REED R8080

This data logging sound level meter has the ability to record samples on internal memory and keep track of registered readings with a time and date stamp. The R8080 features user selectable sampling rates and the option to track live measurements via the included PC interface software.

Features

High accuracy of ±1.4 dB meets Type 2 standards
Triple range measurement (60dB dynamic range)
A & C frequency weighting
Fast & Slow time weighting
Record up to 64,000 datapoints and keep track with internal time and date stamp
User selectable sampling rate from 1 to 60 seconds
Easy-to-read backlit LCD display
Digital analog bargraph
Min/Max hold and auto shut off
Tripod mount for long-term monitoring
Low battery indicator

REED R8080 Specifications

Measuring Ranges 30 to 130dB

Low: 30 to 90dB

Med: 50 to 110dB

High: 70 to 130dB

Full: 30 to 130dB

Dynamic Range 60dB (in each range)

Accuracy ±1.4dB

Resolution Digital: 0.1dB

Analog: 2dB

Response Time Digital: 500ms

Analog: 50ms

Frequency Range 20 Hz to 8 kHz

Frequency Weighting A, C

Time Weighting Fast/Slow (125ms and 1s)

Microphone 0.5" (12.7mm) electret condenser

Digital Analog Bargraph Yes (30 segment)

Display 4-digit LCD

Backlit Display Yes

Min Yes

Max Yes

Alarm Indicators Under and Over (visual on-screen)

Datalogging Capabilities Yes

Real-Time Clock and Date Stamp Yes

Selectable Sampling Rate Yes (between 1s and 60s)

Internal Memory 1MB (64,000 datapoints)

Auto Shut-off Yes (after 30 mins/off)

Tripod Mountable Yes

Low Battery Indicator Yes

Power Supply 4 x AAA batteries

Output Yes (AC/DC)

Battery Life Approx 50 hours

PC Connectivity USB

Software OS Compatibility Windows XP/Vista/7/8/10/11

Product Certifications CE, IEC 61672-1 Class 2, ANSI S1.4 Type 2

Operating Temperature 32 to 104°F (0 to 40°C)

Storage Temperature 14 to 140°F (-10 to 60°C)

Operating Humidity Range 10 to 90%

Dimensions 10.4 x 2.5 x 1" (264 x 63 x 29mm)

Weight 8.8oz (245g)

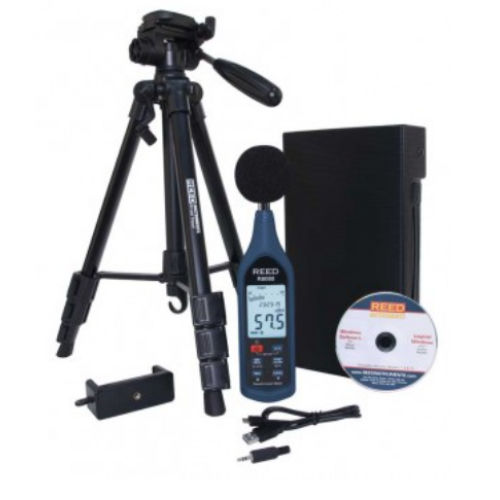

REED R8080 Sound Level Meter/Data Logger

Quick-responding triple-range sound level meter with large backlit display, analog bargraph and built-in memory to data log up to 64,000 points.

REED R1500 Tripod

Expandable up to 56" and features an add-on adapter capable of mounting instruments without a tripod mount. The R1500 is a convenient accessory for any data logging instrument setup for long-term continuous monitoring.
