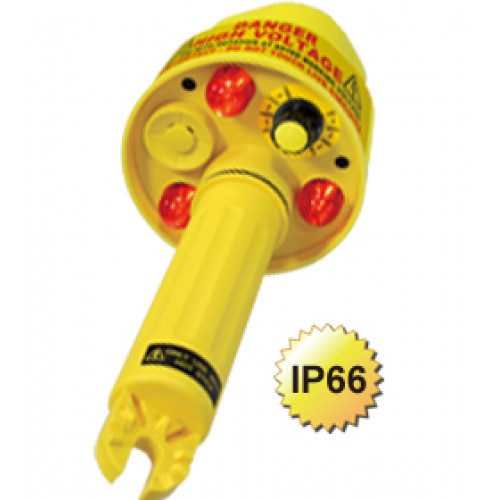

FEATURES

• Protection class : IP66.
• 3 LED indicators in a circle for easier viewing in any directions (360° LED indication).
• 8 voltage settings : 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV.
• High bright LED visual indication.
• With the longer shelter to make the 3 LED indicators brighter under the sun.
• Sound indication.
• The maximum voltage setting can be 500kV .
• Self-test function.
• Power source : 1.5V "C" type battery × 3.
• High impact nylon casing.
• Non-contact work by proximity.
• Compatible with most hot sticks.
• Lightweight, robust & compact.
• Suitable for indoor and outdoor use.
• Easy access to batteries.
• Special ranges are available upon request.
• The maximum detection range can be 500kV.
• Meets EN 61326-1 CISPR 11

EN 61000-4-2 EN 61000-4-3

EN 61000-4-8

※Taiwan Patent : M489287、D170390

SPECIFICATIONS
