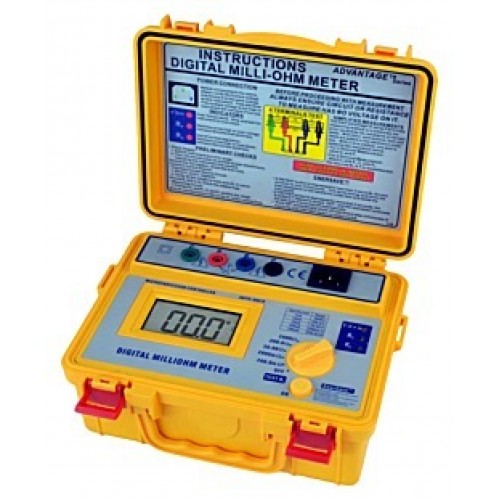

  • SEW 4136 mO MILLIOHM METERS

FEATURES

  • Protection class: IP65 (Lid closed)
  • Microprocessor-controlled.
  • Four terminal measurement.
  • Measures down to 100μΩ.
  • 5 Ranges from 200.0mΩ to 2000Ω.
  • Maximum resolution of 100μΩ.
  • Three test currents with over-temperature protection.
  • Protection against inadvertent connection to over voltage.
  • Large LCD.
  • Potential lead resistance and current lead resistance checks.
  • "Full-featured” EnerSave™ inside.
  • EnerSave™ Auto hold.
  • EnerSave™ Auto off.
  • Lightweight, robust & compact.
  • Indicators show if reading may be invalid (RP, RC, and temperature).
  • "O-Ring” sealed case.

SPECIFICATIONS

Measuring ranges0-200.0mΩ in steps of 100μΩ
0-2000mΩ in steps of 1mΩ
0-20.00Ω in steps of 10mΩ
0-200.0Ω in steps of 100mΩ
0-2000Ω in steps of 1Ω
Accuracy±0.5% of reading ±2 digits over the operating temperature range, -15ºC to +55ºC, with the supplied test leads
Test current1mA=>2000Ω range
10mA=>200 / 20Ω ranges
100mA=>2000m / 200mΩ ranges
Test current accuracy±0.1%
Protection fusesMains = 500mA / 250V, 5 × 20mm fast blow
Current = 500mA / 250V, 5 × 20mm fast blow
Voltage = 500mA / 250V, 5 × 20mm fast blow
Maximum output voltage (C1~C2)20V
Dimensions250(L) × 190(W) × 110(D)mm
Weight1530g
Safety standardEN 61010-1 CAT IV 20V
EN 61326-1
