FEATURES

• Protection class: IP65
• True RMS measurement
• For measuring solar, PV systems
• Auto ranging
• Bar-graph indication
• Data hold function
• 3000V DC Voltage measurement
• 2000V AC Voltage measurement
• AC mA/uA measurement
• DC mA/uA measurement
• Low battery indication
• Auto power off
• Low power consumption
• Rugged and compact
• Comply with
• IEC / EN 61010-1, CAT III 1000V
• IEC / EN 61010-1, CAT IV 600V
• Comply with CAT III 1000V for the range of 0~1000V AC/DC

SPECIFICATIONS

DC Voltage

Input impedance : 10MΩ

Ranges	Resolution	Accuracy
400mV	0.1mV	±(0.5%rdg+5dgt)
4V	1mV
40V	10mV
400V	100mV
1000V for CE	1V
3000 for general	1V	±(1.0%rdg+3dgt)

AC Voltage

Input impedance : 10MΩ

Ranges	Resolution	Accuracy
400mV	0.1mV	±(1.0%rdg+5dgt)
4V	1mV
40V	10mV
400V	100mV
1000V for CE	1V
2000 for general	1V	±(1.5%rdg+3dgt)

DC mA / µA

Overload Protection 0.5A/1000V fast blow fuse for 400mA

Ranges	Resolution	Accuracy
400µA	0.1μA	±(1.2%rdg+5dgt)
4000µA	1μA
40mA	0.01mA
400mA	0.1mA

AC mA / µA

Overload Protection 0.5A/1000V fast blow fuse for 400mA

Ranges	Resolution	Accuracy
400µA	0.1μA	±(1.5%rdg+3dgt)
4000µA	1μA
40mA	0.01mA
400mA	0.1mA

GENERAL

Dimensions	221mm(L) x 110mm(W) x 57mm(D)
Weight (battery included)	Approx. 507g
Power source	1.5V (AA) Alkaline battery x 2
Safety standard	IEC / EN 61010-1 CAT III 1000V IEC / EN 61010-1 CAT IV 600V EN 61326-1

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating     Bad           Good

Captcha

Enter the code in the box below

Continue

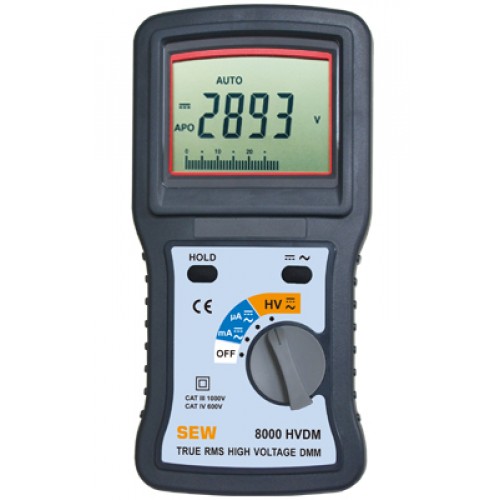

SEW 8000 HVDM TRUE RMS HIGH VOLTAGE DMM
