FEATURES

• Maximum testing current of 10A
• Ranges:
• 200.0μΩ / 2000μΩ 10A
• 20.00mΩ / 200.0mΩ 1A
• 2.000Ω / 20.00Ω 100mA
• 200.0Ω 10mA
• Maximum resolution of 0.1μΩ at 10A
• Four terminal measurements
• 4 Lines × 20 Characters LCD
• Memory function (200 measurement results)
• Auto power off
• Low battery indication
• Power source: Rechargeable battery DC14.8V 5200mAh 76.96Wh
• Safety Standard:
• IEC/EN 61010-1 CAT III 300V
• EN 61326-1

SPECIFICATIONS

4-wire method measurement

Measuring ranges / resolution	200.0μΩ / 0.1μΩ 2000μΩ / 1μΩ 20.00mΩ / 0.01mΩ 200.0mΩ / 0.1mΩ 2.000Ω / 1mΩ 20.00Ω / 0.01Ω 200.0Ω / 0.1Ω
Accuracy	200.0μΩ ~ 2000μΩ: ±(2% + 8dgt) 20.00mΩ ~ 200.0Ω: ±(1% + 4dgt)
Testing current	10A: 200.0μΩ / 2000μΩ 1A: 20.00mΩ / 200.0mΩ 100mA: 2.000Ω / 20.00Ω 10mA: 200.0Ω

General

Operating temperature	0~40°C
Operating humididty	80% RH
Dimensions	322(L) × 260(W) × 135(D)mm
Weight (battery included)	Approx. 3219 g
Power source	Rechargeable battery DC14.8V 5200mAh 79.69Wh
Safety standard	EN 61010-1 CAT III 300V EN 61326-1

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating     Bad           Good

Captcha

Enter the code in the box below

Continue

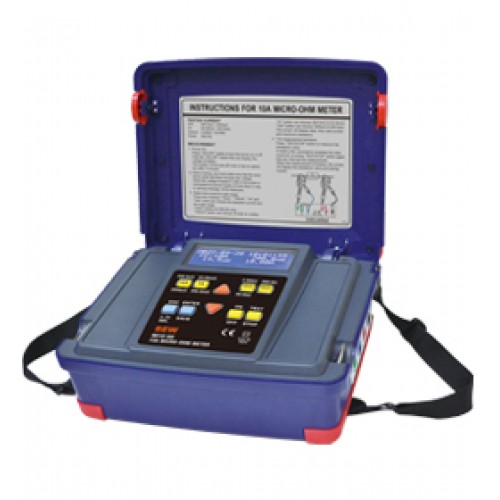

SEW 9010 UO MICROOHM METER

• Brand: SEW
• Product Code: 9010 UO
• Availability: Pre-Order

• Rp.0
